Luckfox Pico Pi

Product Introduction​

The Luckfox Pico Pi series includes the Pi A, Pi A W, Pi B, and Pi B W. All four models share the same interface layout but differ in SoC, memory capacity, and wireless connectivity:

  • Luckfox Pico Pi A / Pi A W use the RV1106G3 with 256 MB DDR3L and a 1 TOPS NPU.

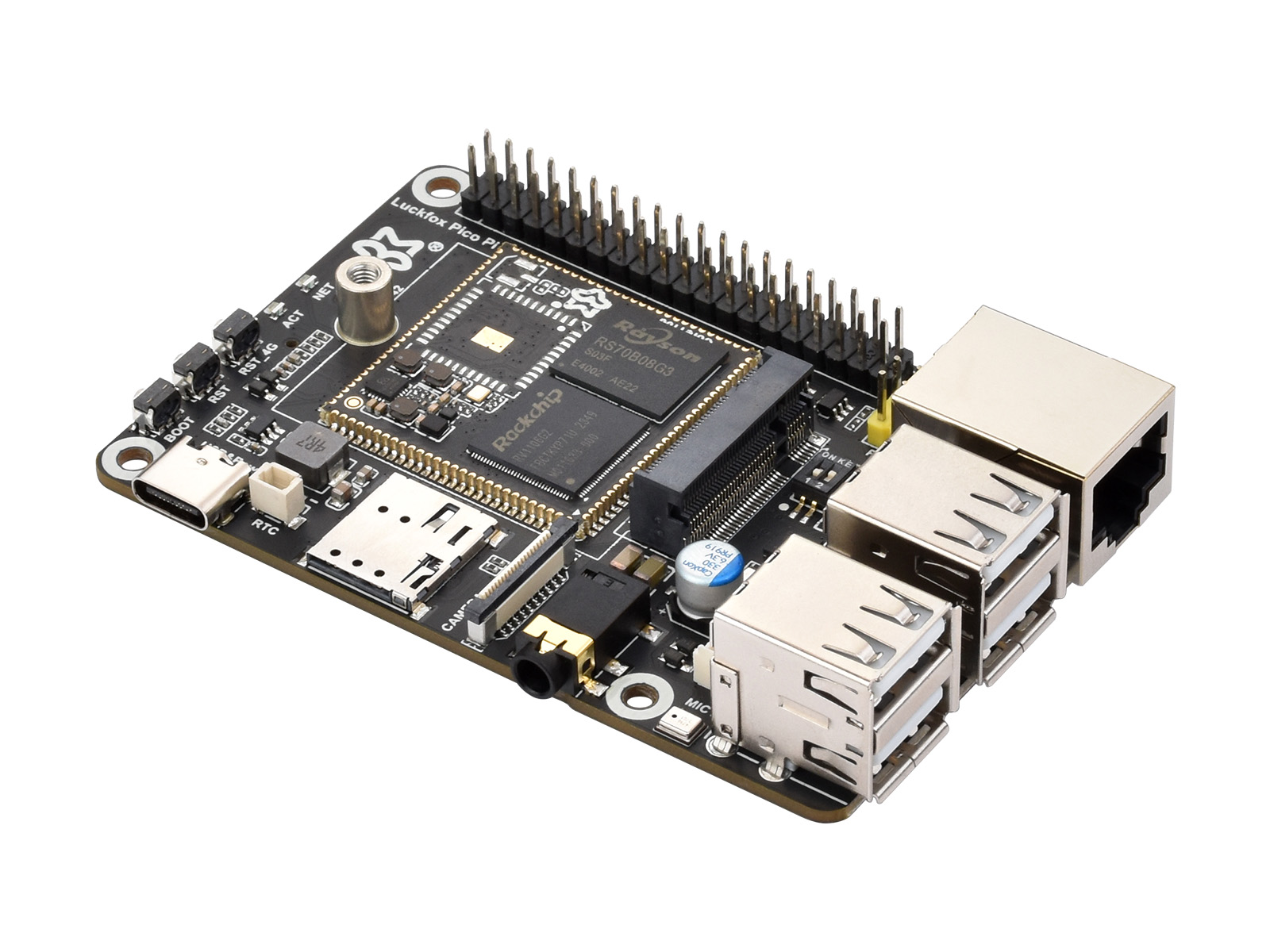

  • Luckfox Pico Pi B / Pi B W use the RV1106G2 with 128 MB DDR3L and a 0.5 TOPS NPU.

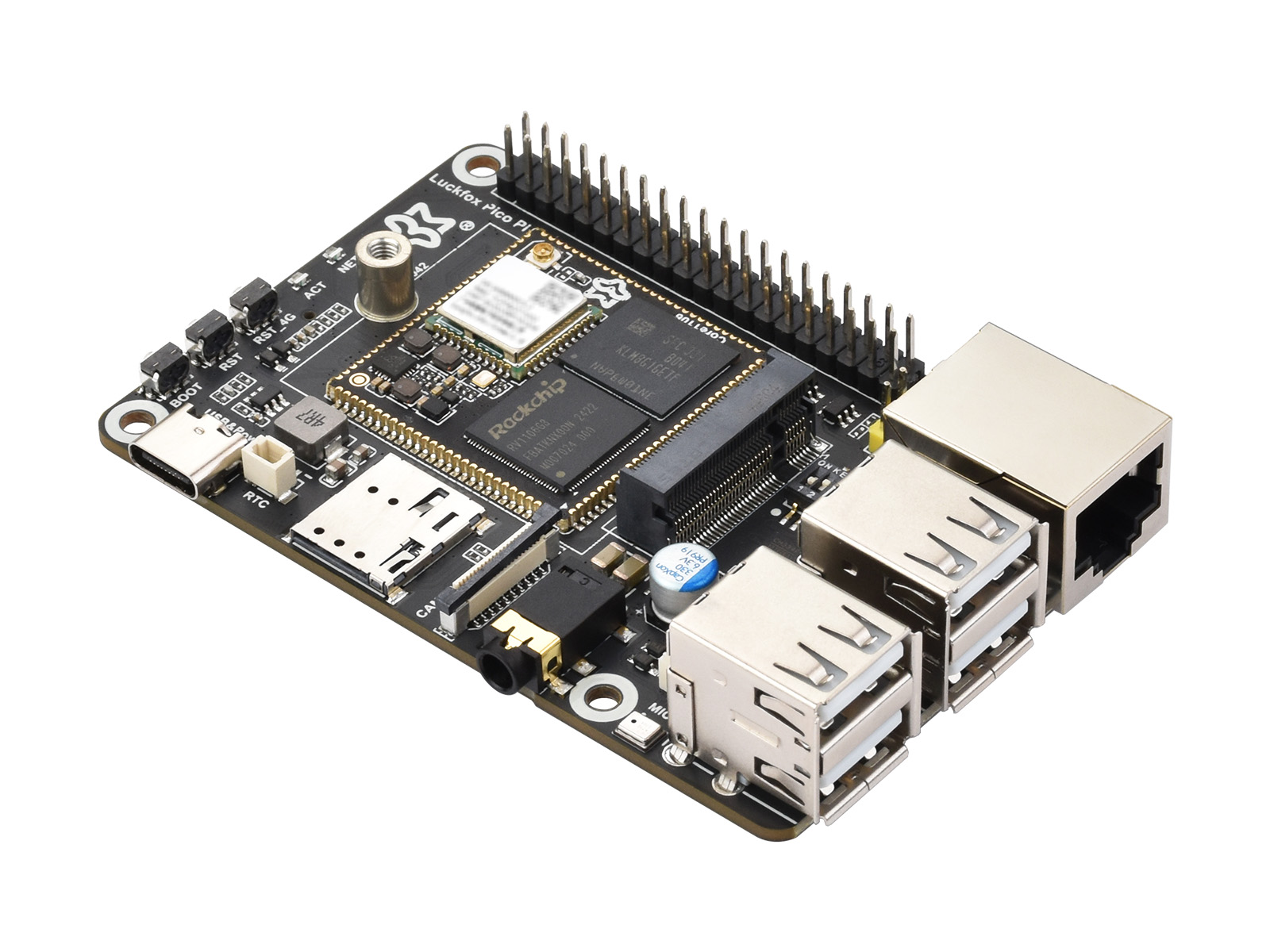

  • Models with the W suffix provide 2.4 GHz Wi-Fi 6, Bluetooth 5.2, and BLE connectivity.

The series includes 8 GB eMMC storage, a 2-lane MIPI CSI camera interface, 100 Mbps Ethernet, IEEE 802.3af PoE, audio input and output, USB Device, four USB 2.0 Host ports through a hub, and a 40-pin expansion header compatible with the Raspberry Pi layout. The onboard M.2 and Nano SIM slots support 4G modules such as the SIM7600G-H-M.2. The MicroSD card slot is for storage expansion and does not support system boot. All models are supported by the Buildroot system and SDK.

Luckfox Pico Pi ALuckfox Pico Pi A WLuckfox Pico Pi BLuckfox Pico Pi B W
SOCRV1106G3RV1106G2
ProcessorCortex A7 1.2GHz
NPU1 TOPS, supports INT4, INT8, and INT160.5 TOPS, supports INT4, INT8, and INT16
VEPUSupports H264/H265 video encoding
ISPMaximum 5M @30fps input
Memory256MB DDR3L128MB DDR3L
Wi-Fi+Bluetooth/2.4GHz WiFi6 Bluetooth 5.2/BLE/2.4GHz WiFi6 Bluetooth 5.2/BLE
Default StorageeMMC(8GB)
POE PortIEEE 802.3af PoE
Ethernet10/100M Ethernet controller and embedded PHY
Camera Interface1 x MIPI CSI 2-lane
Audio1 x Surface-mount microphone
1 x Microphone expansion port (MX1.25mm-2P)
1 x 3.5mm audio output
USB1 x USB Device
4 x USB HOST 2.0 (HUB expansion)
RTC1 x RTC Port(SH1.0-2P)
Storage Expansion1 x MicroSD slot (storage-only, no system boot support)
Mobile Connectivity1 x Nano SIM slot
1 x 4G module M.2 slot (supports SIM7600G-H-M.2 4G module)
GPIOBased on Raspberry Pi 40Pinout
