ISG1321 Camera
1. Module Specifications
- Image Sensor: ISG1321
- Effective Pixels: ~1.38 Megapixels
- CMOS Size: 1/4 inch
- Resolution: 1280 × 1080
- Camera Type: Monochrome
- Shutter Type: Global Shutter
2. Lens Specifications (Wide-Angle, Distortion-Free)
| Parameter | Value |
|---|---|
| Focal Length | 2.88 mm |
| Aperture (F) | F2.4 |
| Diagonal FOV (FOV-D) | 95.5° |
| Horizontal FOV (FOV-H) | 87.5° |
| Vertical FOV (FOV-V) | 56.5° |
| Distortion | < 1% |
| Relative Illumination | > 65% |
3. Interface Definition
| No. | Symbol |
|---|---|
| 1 | +3.3V |
| 2 | SDA |
| 3 | SCL |
| 4 | GND |
| 5 | NC |
| 6 | RESET |
| 7 | GND |
| 8 | NC |
| 9 | NC |
| 10 | GND |
| 11 | NC |
| 12 | NC |
| 13 | GND |
| 14 | MCP |
| 15 | MCN |
| 16 | GND |
| 17 | MDP1 |
| 18 | MDN1 |
| 19 | GND |
| 20 | MDP0 |
| 21 | MDP0 |
| 22 | GND |

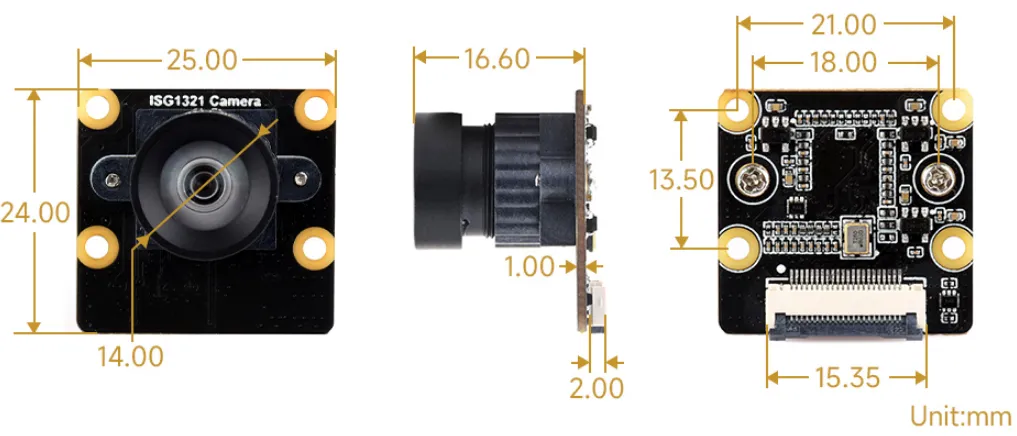

4. Dimensions
5. Compatible Boards & Guides
| Model | User Guide Link |
|---|---|
| Luckfox Pico Zero | https://wiki.luckfox.com/Luckfox-Pico-Zero/CSI-Camera |
