Pinout

• Luckfox Lyra/Lyra B



• Luckfox Lyra Plus

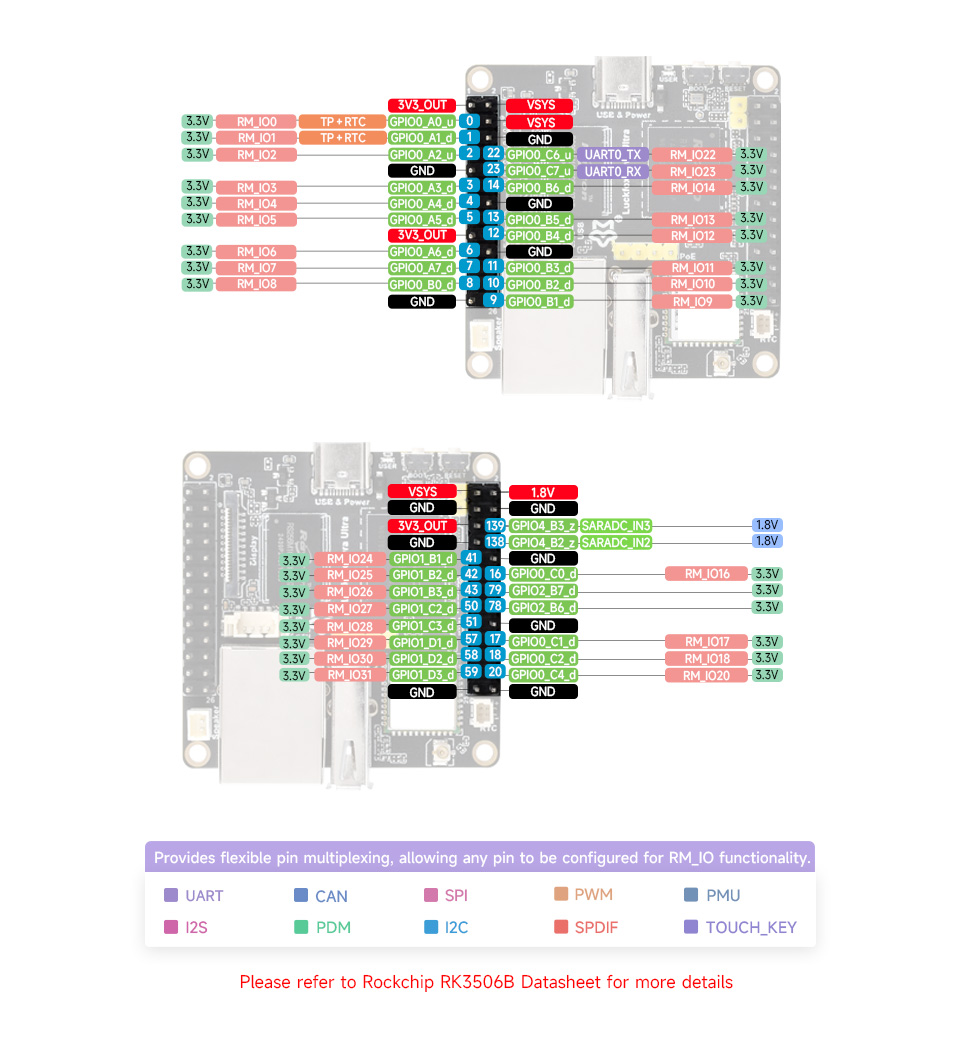

• Luckfox Lyra Ultra/Ultra W

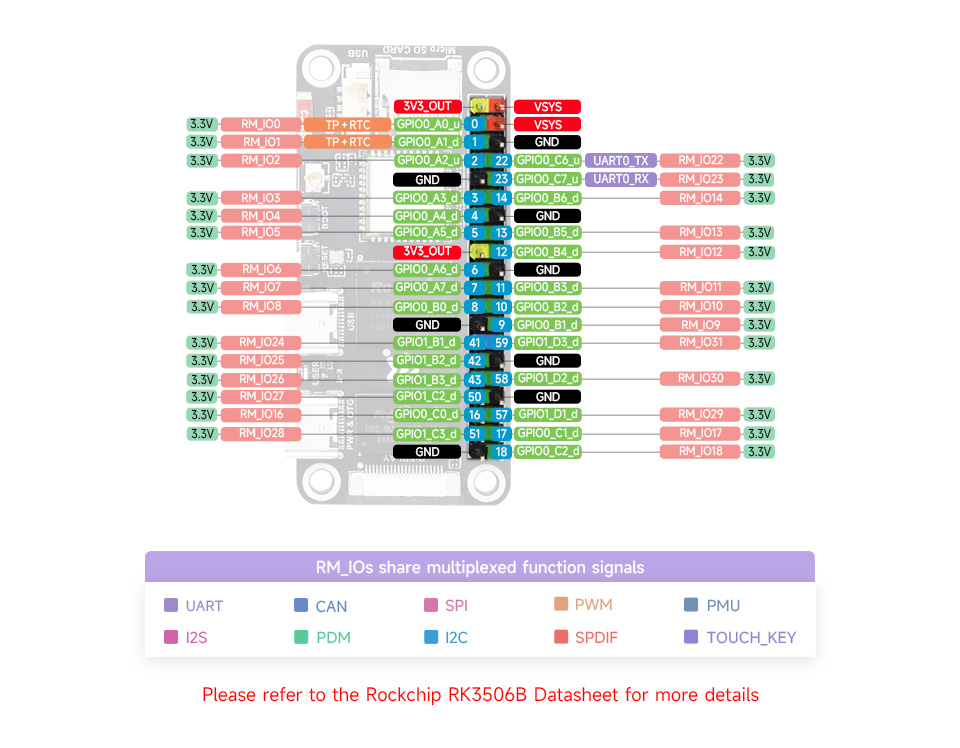

• Luckfox Lyra Zero W

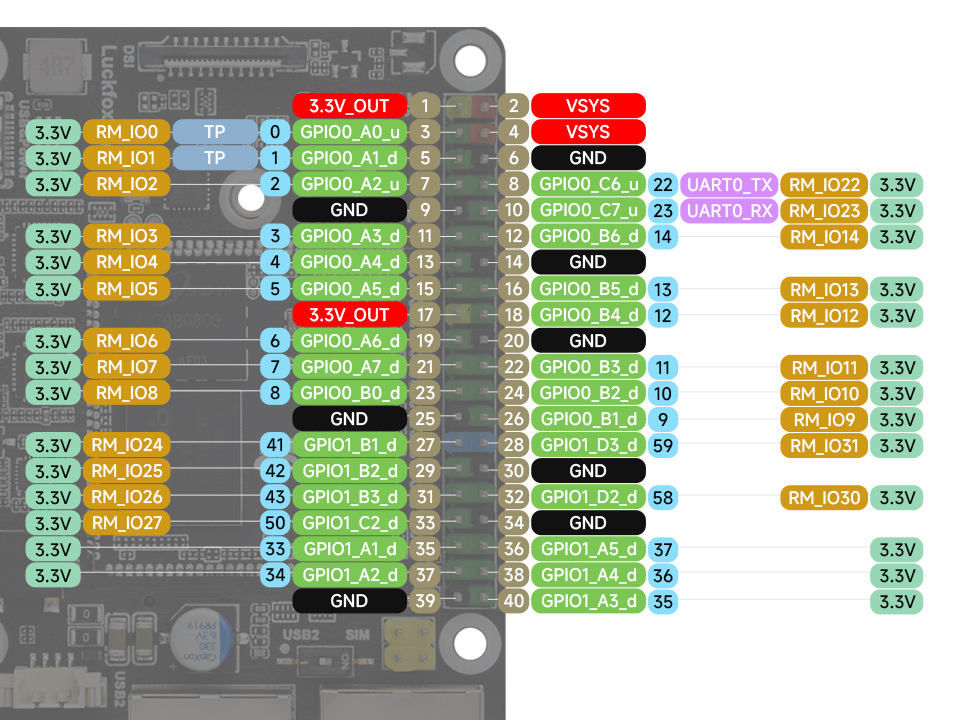

• Luckfox Lyra Pi



• For more detailed features, please refer to the datasheet manuals in "Peripheral Interfaces" and "Resource Downloads."
