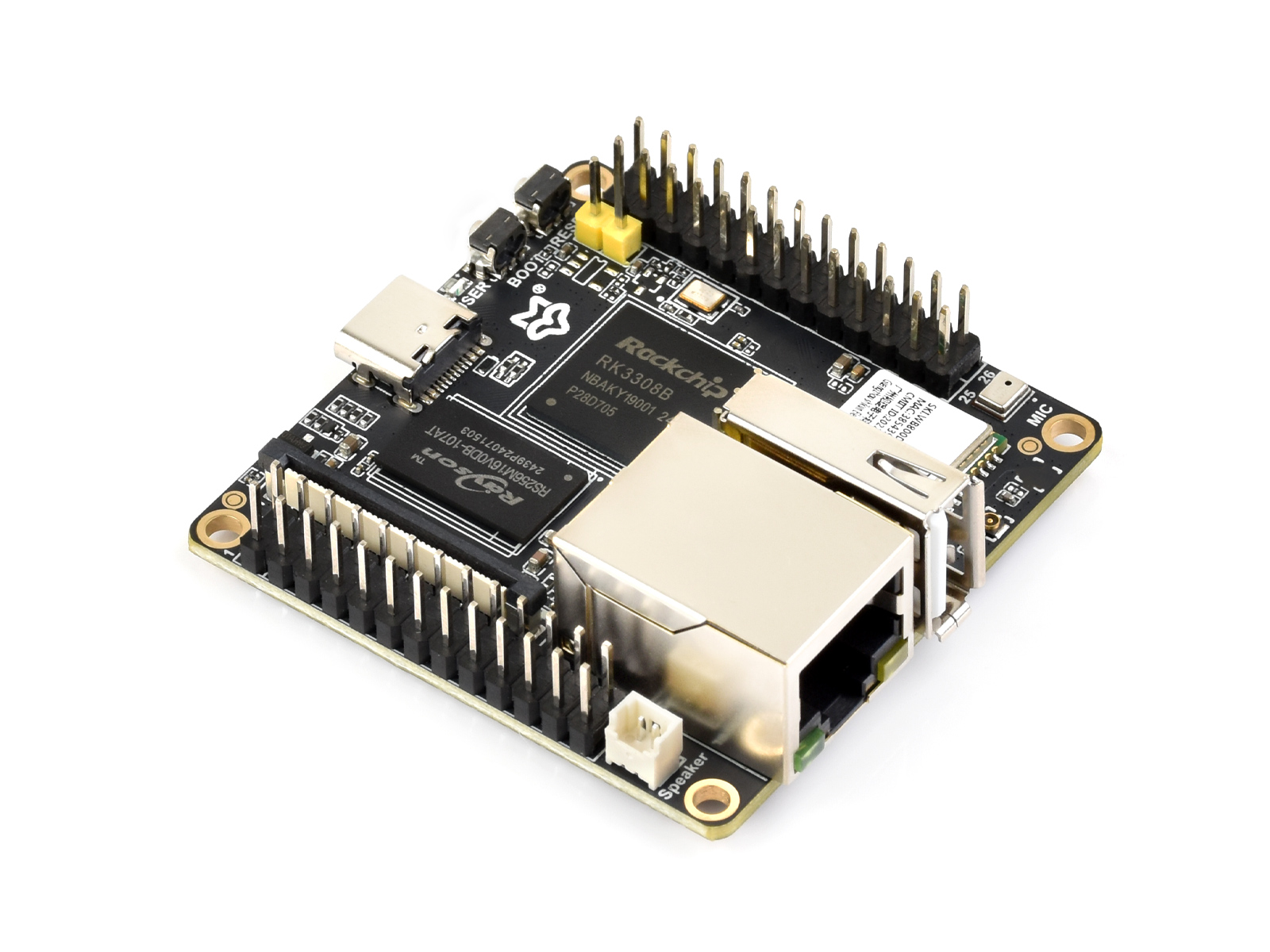

Luckfox Nova
The Luckfox Nova series includes two different versions to meet the various needs of DIY enthusiasts and engineers. For DIY enthusiasts and engineers, they can take advantage of its rich community resources to obtain ideas and knowledge and apply them to their own projects. The Luckfox Nova user manual contains the development board schematic diagram and the Software Development Kit (SDK), enabling you to have a deeper understanding of its working principle and apply it to your own projects.
| Luckfox Nova | Luckfox Nova W | |||
|---|---|---|---|---|
 |  | |||
| Chip | RK3308B | |||
| Processor | Quad-core 64-bit ARM Cortex-A35, 1.3GHz | |||
| Memory | 512MB DDR3L | |||
| Wi-Fi + Bluetooth | / | 2.4GHz WiFi6 Bluetooth 5.2/BLE | ||
| Default Storage Medium | eMMC(8GB) | |||
| POE Interface | IEEE 802.3af PoE | |||
| Network Interface | 10/100M Ethernet controller and embedded PHY | |||
| Audio Interface | 1 x SMD microphone 1 x Speaker interface (MX1.25mm-2P) Analog / Digital audio interface | |||
| USB | 1 x USB Device 1 x USB HOST 2.0 | |||
| Storage Expansion Interface | 1 x MicroSD card slot, only supports storage expansion and does not support system startup | |||
| GPIO | 30 GPIO pins | |||
