UART

本章介绍 Luckfox Lume 的串口设备、40Pin 接线、设备树配置，以及 UART3 PD14/PD15 引脚组与 Windows 主机通信和回环测试方法。

1. UART 简介

UART（Universal Asynchronous Receiver‑Transmitter，通用异步收发器）是嵌入式领域广泛使用的串行通信协议。UART 采用异步传输机制，收发双方不需要共用时钟信号，数据以逐位串行的方式进行传输，非常适用于短距离、低速率外设之间的数据交互。

Luckfox Lume 使用 /dev/ttyASx 命名片内串口。本章使用 UART3：/dev/ttyAS3，115200波特率、8数据位、无校验、1停止位（8N1），关闭软、硬件流控。

/dev/ttyAS0 是系统控制台，不用于本章数据回环测试。

2. 串口测试（Shell）

2.1 串口引脚图

串口设备	功能	Lume 信号	40Pin 物理引脚
/dev/ttyAS0	系统控制台 TX	PB9 / UART0_TX	8
/dev/ttyAS0	系统控制台 RX	PB10 / UART0_RX	10
/dev/ttyAS3	通用串口 TX	PD14 / UART3_TX	15
/dev/ttyAS3	通用串口 RX	PD15 / UART3_RX	13
公共地	GND	GND	6（或其他 GND 引脚）

2.2 设备树配置

1. 板级设备树路径：

   device/config/chips/t153/configs/luckfox_lume/linux-5.10-origin/board.dts

2. SDK 中已定义 &pio UART3 引脚组，需要启用 &uart3：

   &pio {
       uart3_pins_active: uart3_pins@0 {
           pins = "PD14", "PD15";
           function = "uart3";
       };

       uart3_pins_sleep: uart3_pins@1 {
           pins = "PD14", "PD15";
           function = "io_disabled";
       };
   };

   &uart3 {
       pinctrl-names = "default", "sleep";
       pinctrl-0 = <&uart3_pins_active>;
       pinctrl-1 = <&uart3_pins_sleep>;
       status = "okay";
   };

3. 编译设备树及打包镜像：

   ./build.sh dts
   ./build.sh
   ./build.sh pack

2.3 查看串口设备

在 /dev 目录下，每一路 UART 串口对应一个独立的字符设备文件。设备命名一般以 ttyAS 搭配串口号生成，例如 /dev/ttyAS3 代表第 3 路 UART 串口。 可执行以下命令查看系统内所有串口设备：

root@luckfox:~# ls /dev/ttyAS*
/dev/ttyAS0  /dev/ttyAS3

2.4 设置串口

1. 用stty工具查询其通信参数：

   root@luckfox:~# stty -F /dev/ttyAS3
   speed 9600 baud; line = 0;

2. 修改波特率，其中ispeed为输入速率，ospeed为输出速率：

   stty -F /dev/ttyAS3 ispeed 115200 ospeed 115200

3. 关闭回显：

   stty -F /dev/ttyAS3 -echo

3.与Windows主机通讯

1. 将串口转接模块一端连接至电脑 USB 接口，另一端接线接入 LuckFox Lume 开发板，接线如下：

   Luckfox Lume	UAB to UART
   第15脚 PD14	RX
   第13脚 PD15	TX
   第6脚 GND	GND

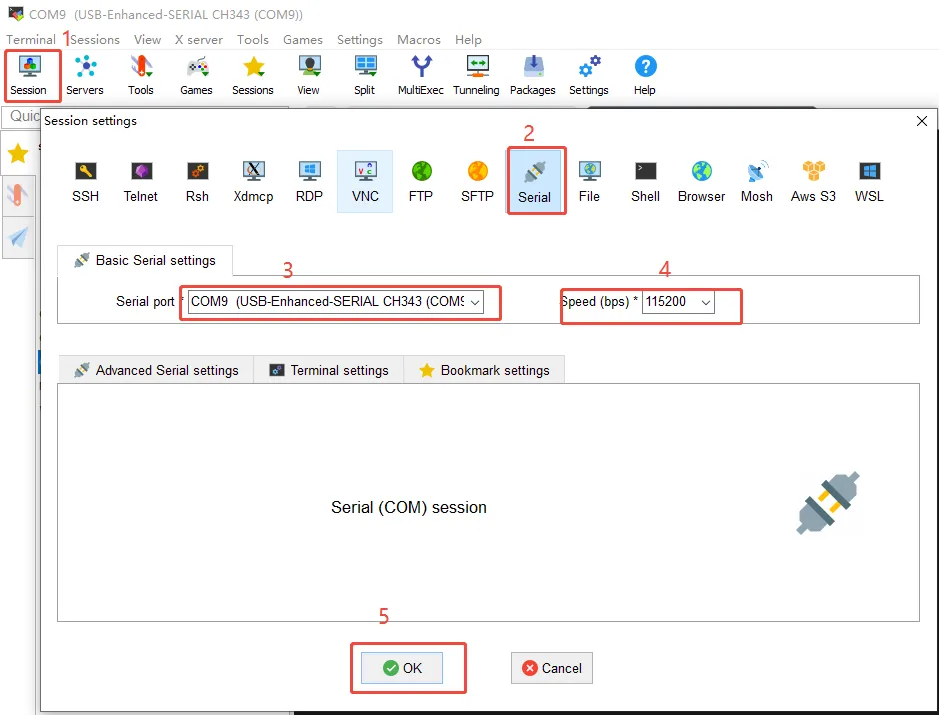

2. 打开 MobaXterm 软件，新建串口 (Serial)会话；配置串口波特率，波特率为 115200，可根据实际修改后的串口参数进行调整。



3. 在开发板上的终端执行以下指令，使用 echo 命令向终端设备文件写入字符串"Hello"和"world !"：

   root@luckfox:~# echo Hello > /dev/ttyAS3
   root@luckfox:~# echo "world !" > /dev/ttyAS3

4. Windows 上的串口调试助手会接收到内容：



4. 串口通信（Python程序）

1. 完整代码：


   #!/usr/bin/env python3
   import os
   import select
   import sys
   import termios
   import time

   DEVICE = "/dev/ttyAS3"
   MESSAGE = b"Luckfox Lume UART test\r\n"
   READ_SIZE = 128
   TIMEOUT = 3.0


   def configure_uart(fd):
       config = termios.tcgetattr(fd)
       config[0] = 0
       config[1] = 0
       config[2] &= ~(termios.CSIZE | termios.PARENB |
                   termios.PARODD | termios.CSTOPB |
                   getattr(termios, "CRTSCTS", 0))
       config[2] |= termios.CS8 | termios.CLOCAL | termios.CREAD
       config[3] = 0
       config[4] = config[5] = termios.B115200
       config[6][termios.VMIN] = 0
       config[6][termios.VTIME] = 0
       termios.tcsetattr(fd, termios.TCSANOW, config)


   def write_all(fd, data, deadline):
       sent = 0
       while sent < len(data):
           remaining = deadline - time.monotonic()
           if remaining <= 0 or not select.select([], [fd], [], remaining)[1]:
               raise TimeoutError("UART transmit timeout")
           try:
               count = os.write(fd, data[sent:])
           except BlockingIOError:
               continue
           if count == 0:
               raise OSError("UART write returned zero")
           sent += count


   def read_reply(fd, deadline):
       received = bytearray()

       while len(received) < READ_SIZE:
           remaining = deadline - time.monotonic()
           if remaining <= 0:
               break
           if not select.select([fd], [], [], remaining)[0]:
               break
           try:
               chunk = os.read(fd, READ_SIZE - len(received))
           except BlockingIOError:
               continue
           if not chunk:
               break
           received.extend(chunk)

       return bytes(received)


   def communicate(device=DEVICE):
       fd = os.open(device, os.O_RDWR | os.O_NOCTTY | os.O_NONBLOCK)
       saved = None
       try:
           saved = termios.tcgetattr(fd)
           configure_uart(fd)
           termios.tcflush(fd, termios.TCIFLUSH)

           deadline = time.monotonic() + TIMEOUT
           write_all(fd, MESSAGE, deadline)
           termios.tcdrain(fd)
           print("TX:", MESSAGE.decode("utf-8").rstrip("\r\n"))

           reply = read_reply(fd, deadline)
           if not reply:
               print("RX: (no data)")
               print("Read 0 bytes")
               return 0
           text = reply.decode("utf-8", errors="replace")
           print(f"RX: {text}")
           print(f"Read {len(reply)} bytes")
           return 0
       finally:
           try:
               if saved is not None:
                   termios.tcsetattr(fd, termios.TCSANOW, saved)
           finally:
               os.close(fd)


   def main():
       try:
           return communicate()
       except KeyboardInterrupt:
           print("UART communication interrupted.", file=sys.stderr)
           return 130
       except (OSError, termios.error) as error:
           print(f"UART error: {error}", file=sys.stderr)
           return 1


   if __name__ == "__main__":
       sys.exit(main())

2. 打开并配置串口：

   fd = os.open(device, os.O_RDWR | os.O_NOCTTY | os.O_NONBLOCK)
   saved = termios.tcgetattr(fd)
   configure_uart(fd)

   以读写、非阻塞方式打开 /dev/ttyAS3，配置115200、8N1、无软硬件流控，并关闭回显和字符转换。

3. 发送数据：

   write_all(fd, MESSAGE, deadline)
   termios.tcdrain(fd)

   write_all() 循环处理部分写入，tcdrain() 等待发送队列中的数据传输完成。

4. 接收数据：

   reply = read_reply(fd, deadline)

   发送完成后等待 Windows 回复，达到128字节或总计3秒超时后返回。

5. 执行程序：

   python3 UART.py

   执行结果：



5. 串口通信（C程序）

1. 完整代码：

   #define _DEFAULT_SOURCE
   #define _POSIX_C_SOURCE 200809L
   #include <errno.h>
   #include <fcntl.h>
   #include <stdio.h>
   #include <sys/select.h>
   #include <termios.h>
   #include <time.h>
   #include <unistd.h>

   #define DEVICE "/dev/ttyAS3"
   #define READ_SIZE 128
   #define TIMEOUT 3.0

   static const unsigned char message[] = "Luckfox Lume UART test\r\n";

   static double monotonic_seconds(void)
   {
       struct timespec now;

       if (clock_gettime(CLOCK_MONOTONIC, &now) < 0)
           return -1.0;
       return (double)now.tv_sec + (double)now.tv_nsec / 1000000000.0;
   }

   static int wait_ready(int fd, int writing, double deadline)
   {
       for (;;) {
           double now = monotonic_seconds();
           double remaining;
           struct timeval timeout;
           fd_set set;
           int result;

           if (now < 0)
               return -1;
           remaining = deadline - now;
           if (remaining <= 0)
               return 0;

           timeout.tv_sec = (time_t)remaining;
           timeout.tv_usec =
               (suseconds_t)((remaining - timeout.tv_sec) * 1000000.0);
           FD_ZERO(&set);
           FD_SET(fd, &set);

           result = select(fd + 1, writing ? NULL : &set,
                           writing ? &set : NULL, NULL, &timeout);
           if (result < 0 && errno == EINTR)
               continue;
           return result;
       }
   }

   static int configure_uart(int fd, struct termios *saved)
   {
       struct termios config;

       if (tcgetattr(fd, saved) < 0)
           return -1;
       config = *saved;
       config.c_iflag = 0;
       config.c_oflag = 0;
       config.c_cflag &= ~(CSIZE | PARENB | PARODD | CSTOPB);
   #ifdef CRTSCTS
       config.c_cflag &= ~CRTSCTS;
   #endif
       config.c_cflag |= CS8 | CLOCAL | CREAD;
       config.c_lflag = 0;
       config.c_cc[VMIN] = 0;
       config.c_cc[VTIME] = 0;

       if (cfsetispeed(&config, B115200) < 0 ||
           cfsetospeed(&config, B115200) < 0 ||
           tcsetattr(fd, TCSANOW, &config) < 0)
           return -1;
       return 0;
   }

   static int write_all(int fd, const unsigned char *data, size_t size,
                       double deadline)
   {
       size_t sent = 0;

       while (sent < size) {
           int ready = wait_ready(fd, 1, deadline);
           ssize_t count;

           if (ready <= 0) {
               if (ready == 0)
                   errno = ETIMEDOUT;
               return -1;
           }
           count = write(fd, data + sent, size - sent);
           if (count < 0 && (errno == EAGAIN || errno == EINTR))
               continue;
           if (count <= 0) {
               if (count == 0)
                   errno = EIO;
               return -1;
           }
           sent += (size_t)count;
       }
       return 0;
   }

   static ssize_t read_reply(int fd, unsigned char *data, size_t size,
                           double deadline)
   {
       size_t used = 0;

       while (used < size) {
           int ready = wait_ready(fd, 0, deadline);
           ssize_t count;

           if (ready < 0)
               return -1;
           if (ready == 0)
               break;

           count = read(fd, data + used, size - used);
           if (count < 0 && (errno == EAGAIN || errno == EINTR))
               continue;
           if (count < 0)
               return -1;
           if (count == 0)
               break;
           used += (size_t)count;
       }
       return (ssize_t)used;
   }

   static int communicate(const char *device)
   {
       int fd = open(device, O_RDWR | O_NOCTTY | O_NONBLOCK);
       int result = 1;
       int have_saved = 0;
       struct termios saved;
       unsigned char received[READ_SIZE];
       const size_t message_size = sizeof(message) - 1;
       double now;
       double deadline;
       ssize_t received_size;

       if (fd < 0) {
           perror(device);
           return 1;
       }
       if (fd >= FD_SETSIZE) {
           fprintf(stderr, "UART file descriptor exceeds select limit\n");
           goto cleanup;
       }
       if (configure_uart(fd, &saved) < 0)
           goto error;
       have_saved = 1;
       if (tcflush(fd, TCIFLUSH) < 0)
           goto error;

       now = monotonic_seconds();
       if (now < 0)
           goto error;
       deadline = now + TIMEOUT;

       if (write_all(fd, message, message_size, deadline) < 0)
           goto error;
       if (tcdrain(fd) < 0)
           goto error;

       printf("TX: %.*s\n", (int)(message_size - 2), message);
       received_size = read_reply(fd, received, sizeof(received), deadline);
       if (received_size < 0)
           goto error;
       if (received_size == 0) {
           puts("RX: (no data)");
           puts("Read 0 bytes");
           result = 0;
           goto cleanup;
       }

       printf("RX: ");
       fwrite(received, 1, (size_t)received_size, stdout);
       putchar('\n');
       printf("Read %zd bytes\n", received_size);
       result = 0;
       goto cleanup;

   error:
       perror("UART");
   cleanup:
       if (have_saved && tcsetattr(fd, TCSANOW, &saved) < 0) {
           perror("UART restore");
           result = 1;
       }
       if (close(fd) < 0) {
           perror("UART close");
           result = 1;
       }
       return result;
   }

   int main(void)
   {
       return communicate(DEVICE);
   }

2. 打开并配置串口：

   int fd = open(device, O_RDWR | O_NOCTTY | O_NONBLOCK);

   config.c_cflag &= ~(CSIZE | PARENB | PARODD | CSTOPB);
   config.c_cflag |= CS8 | CLOCAL | CREAD;
   cfsetispeed(&config, B115200);
   cfsetospeed(&config, B115200);

   以非阻塞方式打开 /dev/ttyAS3，设置为115200、8位数据位、无校验、1位停止位，并关闭软硬件流控。发送前清空接收缓冲区，结束时恢复串口原配置。

3. 发送与接收数据：

   if (write_all(fd, message, message_size, deadline) < 0)
       goto error;
   if (tcdrain(fd) < 0)
       goto error;

   received_size = read_reply(fd, received, sizeof(received), deadline);

   串口发送 Luckfox Lume UART test\r\n，然后在同一个3秒截止时间内接收最多128字节，并直接显示收到的内容和字节数。

4. 交叉编译：使用 Lume SDK 的 ARM 工具链。

   export PATH=<Luckfox_Lume_SDK>/out/toolchain/gcc-linaro-11.3.1-2022.06-x86_64_arm-linux-gnueabihf/bin:$PATH
   arm-linux-gnueabihf-gcc -std=c11 -O2 -Wall -Wextra UART.c -o UART

5. 运行程序：

   chmod +x UART
   ./UART

   执行结果：



   超时内没有收到数据时:
