Product Introduction

The LuckFox Pico Zero is based on the Rockchip RV1106 G3 chip, RV1106 is a highly integrated IPC visual processing SoC designed for AI-related applications. It is built on a single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU, and features a built-in NPU that supports INT4/INT8/INT16 mixed operations, with a computing power of up to 1 TOPs.

Furthermore, it features a new hardware-based ISP that supports various algorithm accelerators such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, haze removal, gamma correction, and more. Additionally, it has a built-in 16-bit DDR3l DRAM to maintain demanding memory bandwidth, as well as built-in POR, audio codec, and MAC PHY.

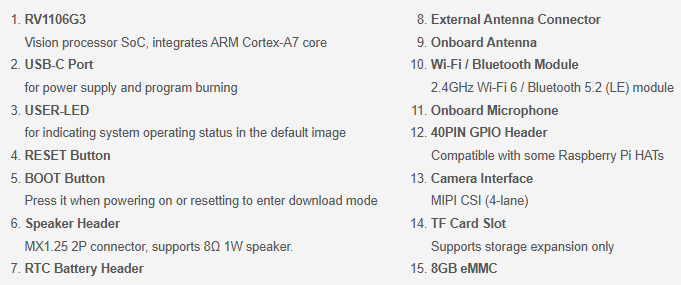

The development board supports multiple interfaces, including GPIO, UART, SPI, I2C, USB, etc., facilitating rapid development and debugging for developers.It's worth noting that the entire LuckFox Pico series development boards support both buildroot systems, allowing developers to choose the appropriate system based on project requirements, providing greater flexibility to meet specific application needs.

Product Parameters

	Luckfox Pico Zero
Chip	RV1106G3
Processor	Cortex A7 1.2GHz
NPU	1TOPS, supports int4、in8、int16
ISP	Max input 5M @30fps
Memory	256MB DDR3L
Wi-Fi+Bluetooth	2.4GHz WiFi6 Bluetooth 5.2/BLE
Camera Interface	MIPI CSI 4-lane
Speaker interface	MX1.25mm
USB	USB 2.0 Host/Device
GPIO	28 GPIO pins
Default Storage Medium	eMMC(8GB)
